If you have ever put on sunglasses at a summer beach, you may have noticed the dazzling reflections flashing off the water vanish as if by magic. Yet if you tilt your head to the side while wearing those sunglasses, the reflections can come back. The light is the same, but whether you see it depends on direction. The secret behind this phenomenon is “Polarization of Light.”
Put simply, polarization means “a state in which light’s vibrations are lined up in one direction.” Light is a wave that vibrates at right angles to the direction it travels, and sunlight or lamplight contains a jumble of vibrations in every direction. Picking out or aligning the direction of these vibrations quietly happens all around us, from sunglasses and smartphone screens to 3D movie theaters.
This article looks in turn at the basic principle of polarization, the ways light becomes polarized, examples of its use in everyday life, and how nature makes use of polarization.
The Hidden Direction of Light: How Polarization Works and How It Is Used
What Is Polarization?
Light is an electromagnetic wave that travels as electric and magnetic fields vibrate at right angles to each other. When talking about polarization, the direction in which the electric field vibrates is usually used as the reference. Light from the sun or an incandescent bulb vibrates in all sorts of directions, so it is called “unpolarized light.”
(1) The fence analogy
Imagine shaking a jump rope through a fence with vertical gaps. If you shake the rope up and down, the waves pass straight through the gaps, but if you shake it side to side, the fence blocks them. A polarizing filter works just like this fence, letting through vibrations in only one direction.
(2) Malus’s law

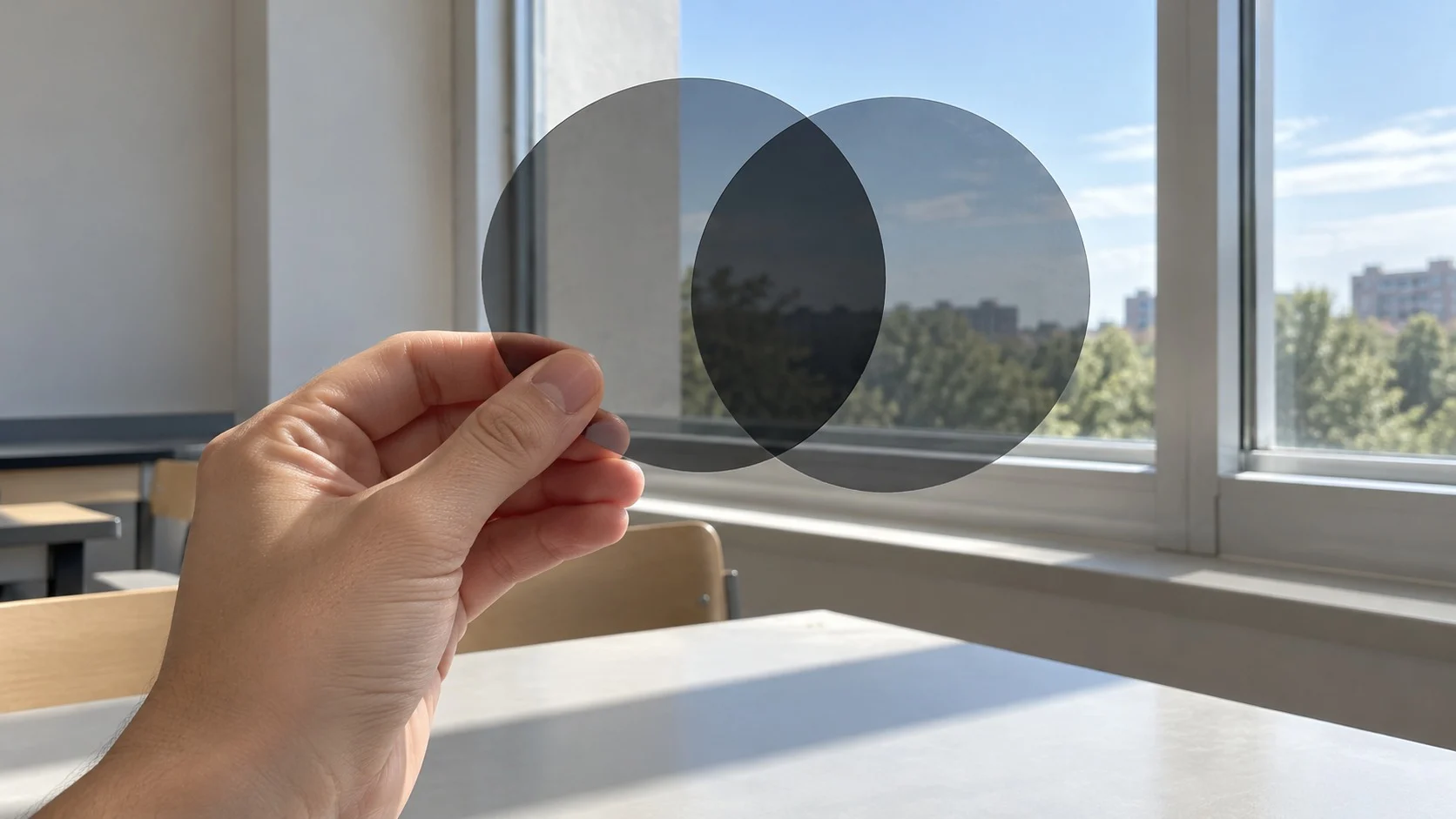

If you stack two polarizing filters and slowly rotate one of them, the light grows gradually dimmer until it is almost completely blocked at 90 degrees. The intensity of the light that passes through is proportional to the square of the cosine of the angle between the two filters, written as I = I0 × cos²θ. It is called Malus’s law, after the person who discovered it.
(3) Linear and circular polarization
When the vibration takes place within a single plane, it is called linear polarization; when the direction of vibration rotates around like a spiral as the light travels, it is called circular polarization. Sunglasses mainly deal with linear polarization, while 3D movie glasses often use circular polarization.
Three Ways Light Becomes Polarized
Even natural light becomes polarized on its own when it meets certain conditions. The main ways are as follows.
- Absorption (Dichroism): Light passes through a material that absorbs vibrations in a particular direction, leaving only the light vibrating in the other direction. Today’s polarizing films use this principle.
- Reflection: Light reflected at a slant from glass or a water surface gains more of the component vibrating parallel to the surface. In 1808, France’s Étienne-Louis Malus discovered this while looking through a calcite crystal at sunlight reflected from the windows of the Luxembourg Palace in Paris, and he also gave “polarization” its name.
- Scattering: Polarization also occurs when sunlight strikes air molecules and scatters. On a clear day, the sky at 90 degrees from the sun is the most strongly polarized.
In 1815, Scotland’s David Brewster showed that the angle at which reflected light becomes completely polarized is determined by the refractive index of the material. This angle is called Brewster’s angle, and it is about 56 degrees for ordinary glass and about 53 degrees for water.
The polarizing filters photographers fit in front of their lenses also use this principle. By rotating the filter to the right position, they can reduce reflections on windows or water so they can see what lies beneath, and reduce the skylight polarized by scattering so that blue skies come out deeper and more vivid.
Examples of Polarization Technology in Everyday Life
With the arrival of cheap, thin polarizing sheets, polarization made its way out of the laboratory. In 1929, the American Edwin Land filed a patent for a film-type polarizer made by lining up tiny crystals in one direction, and he later founded a company called Polaroid.
[Example 1] Polarized Sunglasses
Glare reflected from water and roads vibrates mainly in the horizontal direction. Polarized sunglasses let through only vertical vibrations, filtering out this glare. This is also why anglers wearing polarized glasses can see fish under the water more easily.
[Example 2] Liquid Crystal Displays (LCD)
A liquid crystal display has two polarizing sheets stacked at right angles, and the liquid crystal molecules between them twist the direction of light’s vibration depending on the voltage. This lets each pixel turn light on and off. It is also why a screen can look black at certain angles when you view it while wearing polarized sunglasses.
[Example 3] 3D Movies
In 3D movie theaters, the images meant for the left eye and the right eye are projected with different polarizations, and each lens of the glasses lets through only its own share. As the two eyes see slightly different scenes, the brain creates a sense of depth.
Nature’s Wisdom in Using Polarization
Polarization was a guide for living things long before any human invention. The Austrian zoologist Karl von Frisch discovered that honeybees read the polarization patterns of the sky to find their direction even when clouds hide the sun. Ants, some migratory birds, and fish are also known to sense polarization to find their way.
Polarization is also an important tool in scientific research. When transparent plastic is placed between two polarizing sheets, the parts under force show up as rainbow-colored patterns, allowing engineers to see the stress in structures with their own eyes. Astronomers analyze the polarization of starlight and the cosmic microwave background to study magnetic fields in distant space and what the early universe looked like.
In short, polarization is a hidden property of light, the direction of its vibration, and it arises through absorption, reflection, and scattering. People use it in sunglasses, screens, and movie theaters, while honeybees use it to read a map of the sky. That a single principle connects such a wide range of fields is the most fascinating thing about polarization.
Though invisible to the eye, light carries a clear direction hidden within it. Recalling the glare that vanished behind your sunglasses and imagining light’s vibrations for a moment is the first scientific step toward understanding the invisible order of light.
